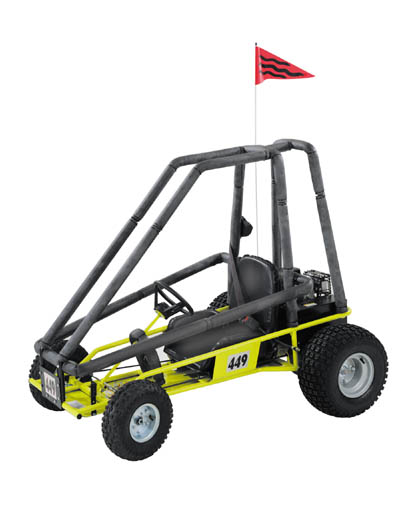

Kartco 6hp Model 449 Karts Comet Torque Converter Driven Live Axle Single Seaters

Four Different 449 Models To Choose From

Model 449T ...... 6hp engine with live axle ..... DISCONTINUED
Model 449TD .... 6hp engine with differential ..... DISCONTINUED

Model 449TE ...... Electric Start 6hp engine with live axle ...... DISCONTINUED
Model 449TDES .. Electric Start 6hp engine with differential ... DISCONTINUED

449 Model Specifications

Overhead Valve 6hp Tecumseh 4 cycle Gasoline Engine

Electronic Ignition

12 Volt Electric Start (Key Start) Model 449TE and 449TDES

Transmission All 449 Models: Comet Torque Converter (torque sensing)

Live Axle; Model 449T and 449TE

Differential Axle; Model 449TD and 449TDES

# 420 Chain

Sealed ball bearings

14.5" tall Front Wheels: 6" steel rim with 14.5x7-6" Knobby Tires

18" tall Rear Wheels: 8" steel rim with 18x9.50-8" Knobby Tires

Brake: foot operated band and drum brake

Fuel consumption: approx. 30-50 MPG

18" wide fingertip adjustable slide seat

Restraint system: Three-point shoulder/lap belts

Full brush bars

Height 52" Length 65" Width 45"

Weight - 235 pounds

6" of ground clearance
